XH Series Gyratory Crusher for High-Strength Production
Feature
Large capacity Low cost
XH gyratory crusher has a fine crushing chamber design, to ensure stronger production capacity, greater feed size and longer liner life; Large dip Angle and long crushing surface design, with the optimized design of stroke and speed, so that the crusher has super crushing capacity, suitable for all kinds of coarse crushing operation; By simply replacing the eccentric sleeve, the processing capacity of the crusher can be changed to meet the needs of different crushing process.
High intensity production
XH gyratory crusher machine higher strength, longer service life, to ensure more safe and reliable continuous high intensity production; High strength super heavy frame design, can be applied to harsh production conditions, ensure safe and trouble-free operation, reduce shutdown time; The moving cone lock thread is located on the replaceable main shaft sleeve, and the main shaft has no thread, no stress concentration and higher strength.
Easy to operate and maintain
XH gyratory crusher as a super large equipment, in the design of special attention to the convenience of maintenance, automatic lubrication and hydraulic system. Lubrication system can automatically lubricate heating, cooling and circulation according to production conditions; Equipped with automatic spindle position control system, you can control the main shaft through the hydraulic system, convenient to adjust the size of the discharge chute, but also can compensate liner wear, control the size of the grain; The gear backlash can be easily adjusted through the external gear adjustment device, and the spider bushing and seal can be replaced without removing the spider. A hydraulic separator of spider can be configured when the spider needs to be removed.
High efficiency intelligence
High efficiency equipment adopts automatic control system, equipped with lubrication pressure, lubrication temperature, bearing temperature, rotation speed, main shaft position and other sensors, PLC and touch screen, to realize the detection and control of each link of the equipment and real-time display; And can automatically diagnose running fault, record equipment production information. The automatic control system can not only control and protect the operation of the equipment, reduce the maintenance cost and shutdown time of the equipment, and improve the operation rate of the equipment; It can also optimize the working parameters of the equipment according to the operation condition of the equipment, improve the production efficiency of the equipment, and ensure the stable and efficient production of the equipment with low consumption.

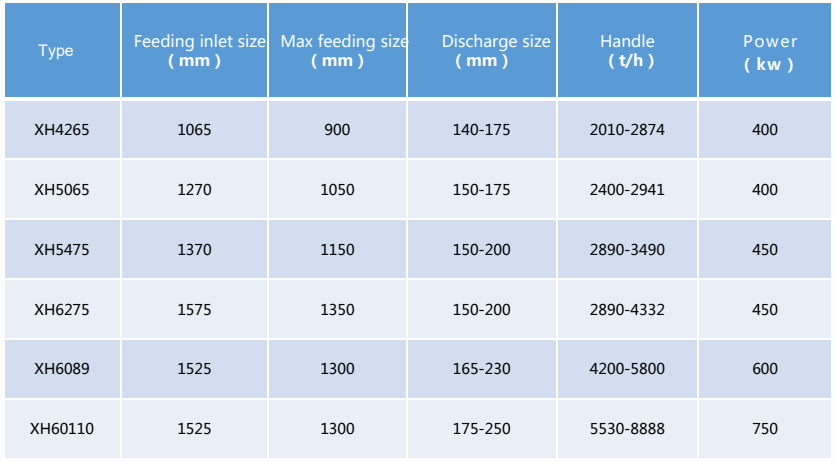

Product Parameter
According to technical changes and updates, the technical parameters of the equipment are adjusted at any time. You can directly contact us to obtain the latest technical parameters.
